150W 4-Wires Battery Capacity Tester 1.77 Inch TFT Color Screen CNC Type Electronic Load Power Discharge Tester

Parameters:Load voltage-U: DC0V~150V Load current-I: 0~10ALoad power-W:U×I≤150W(max)To avoid pulse damage, the total load power is capped at 60W when the load voltage is ≥120VCapacity metering range:0~999999mAhEnergy measurement range:0~999999mWhApplicable power supply: DC12V 1AWiring mode: four-wire system A+ V+ V- A-Display mode: 1.77 inch TFT color screenControl operation: 4 button controlHeat dissipation mode: active heat dissipation load current 3A or more or core temperature ≥ 40 ℃ to start the fanOver-voltage protection: supportOvercurrent protection: supportOver power protection: SupportOver-temperature protection: the core temperature exceeds 80 ℃ to stop the load (non-adjustable)Time limit discharge: SupportPower failure save: SupportRestore factory settings：①Device power off②Press and hold the "SET" key and do not release③Equipment power on, wait for the display normal display and then release the "SET" key, the operation is completePackage list：Instrument main unit X1Adapter X1

• Supports 0~150V, 0~10A within the maximum 150W load.
• Over-voltage, over-current, over-power, over-temperature protection and reverse connection protection below 100V.
• Support timing shutdown and specified voltage shutdown.

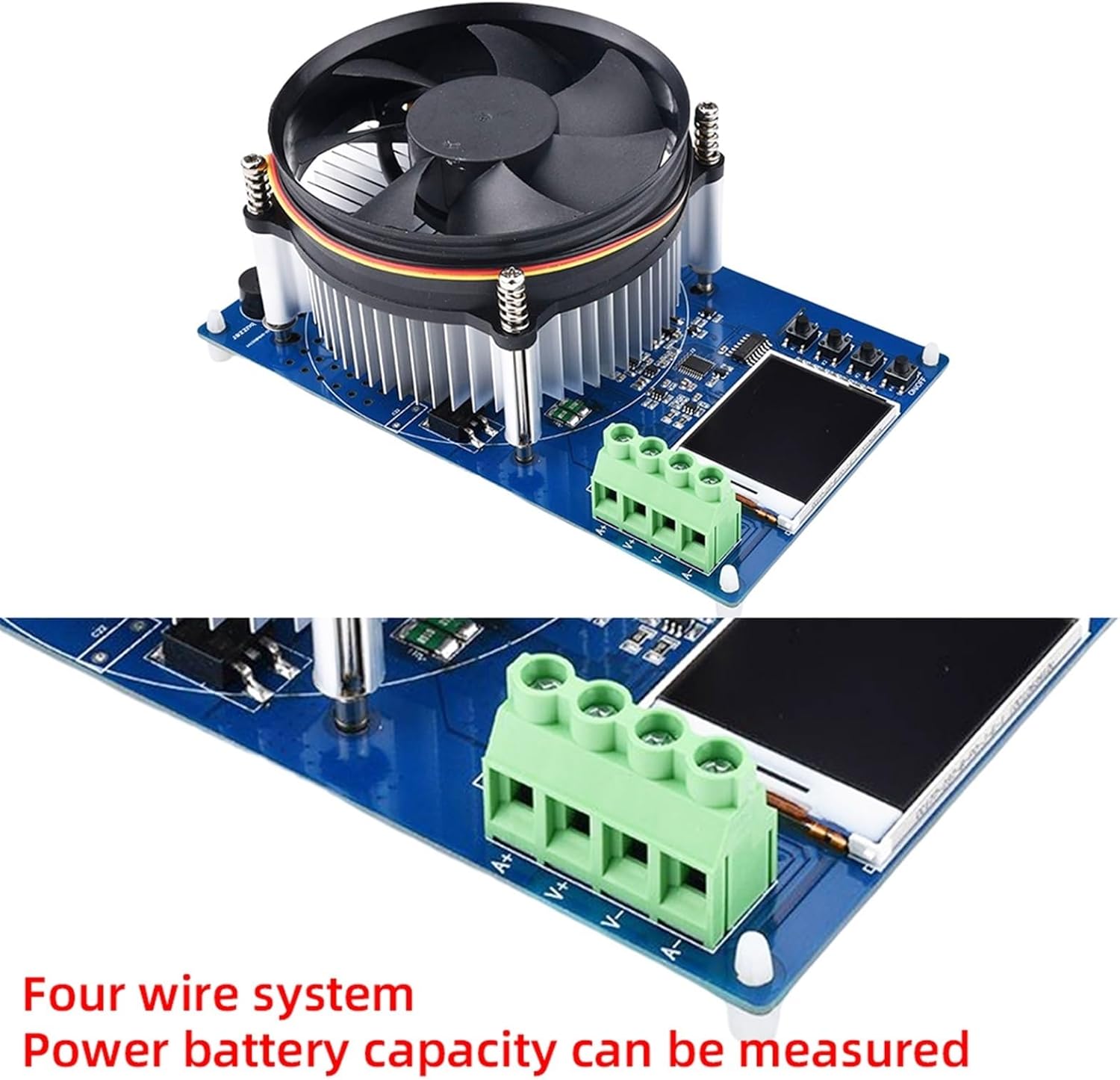

• Four-wire wiring system for more accurate capacity measurement.
• Active heat dissipation with load current above 3A or core temperature ≥40℃ to start the fan.
