Acouto 85mm Speedometer 3.3in 12V/24V 0‑160MPH Speedometer Speed Gauge LCD Display with White Amber Backlight for Car Truck Boat

How to Use: 1. Make a 85mm diameter hole on the panel (your cabin panel and instrument panel), insert the gauge into the hole, the panel corresponding to the instrument panel is marked with a , and make a small notch at this position, To ensure that there is at least a 85mm (3 3/8in) instrument panel on the back of the instrument. 2. After installing the gauge into the panel, screw it down with the fixing ring. 3. Connect the wires, the gauge shell is directly connected to the 12V/24V power supply. 4. Insert the wire harness and fix it firmly on the table. Wiring: The red wire connects to the positive pole The black wire connects to the negative pole The yellow wire connects to the yellow backlight The white wire connects to the white backlight The green wire connects to The brown wire connects to sensor Specification: Item Type: Speedometer Material: ABS + 316L Stainless Steel Mode: LCD display, stepping motor Installation Diameter: 85mm/3.3in Working Voltage: 9-32V (12V/24V) Backlight Color: White or amber Indication Range: 0-160MPH Working Temperature: -30℃-+75℃ Storage Temperature: -40℃-+85℃ Level: IP67 Function: Display current speed and total mileage; quick response to stepper motor, settable warning and buzzer, with everything needed for installation Application: Suitable for car, truck, boat, generator engine, gasoline engine Package List: 1 x Speedometer 1 x Power Cord 1 x Manual

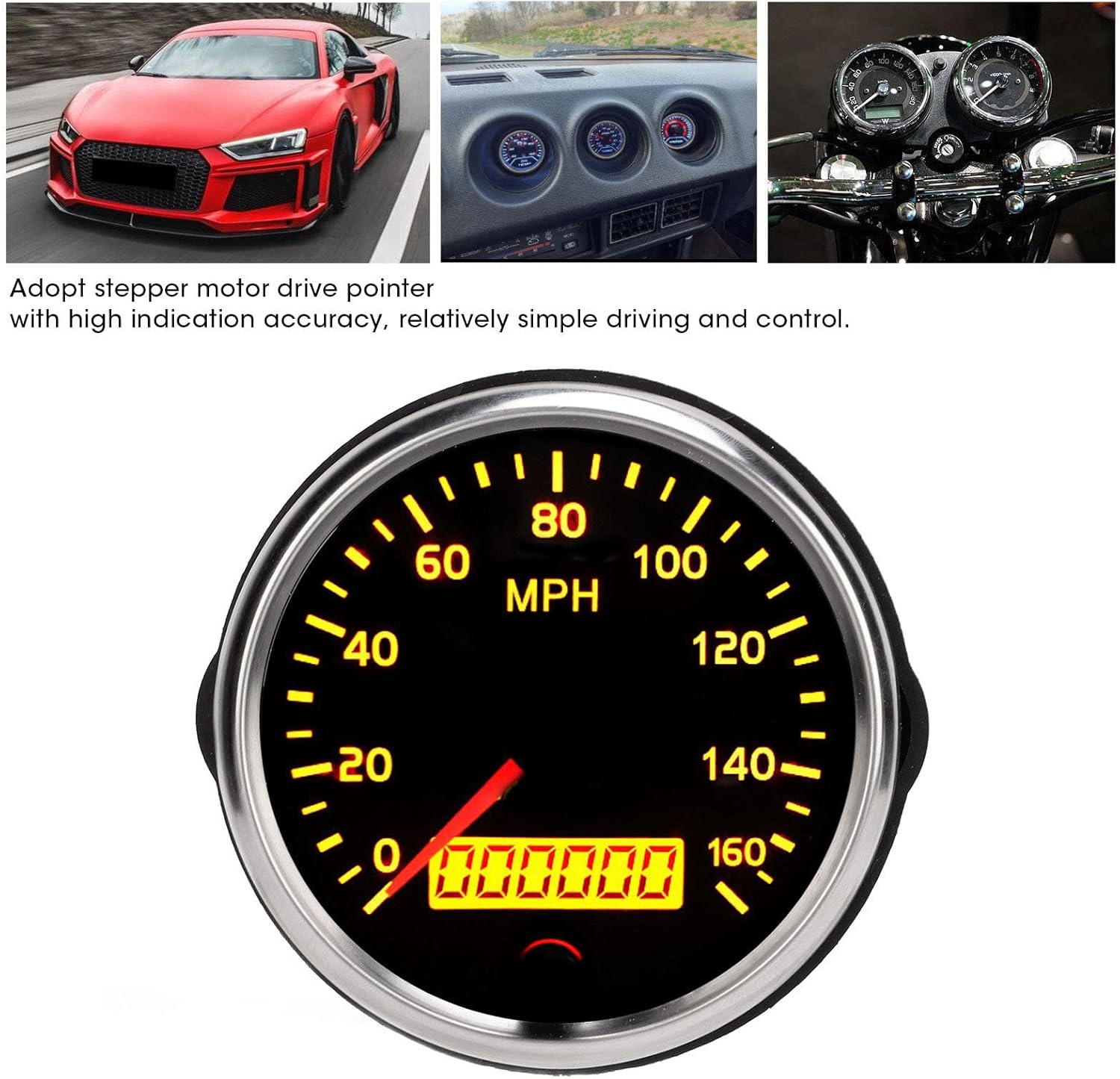

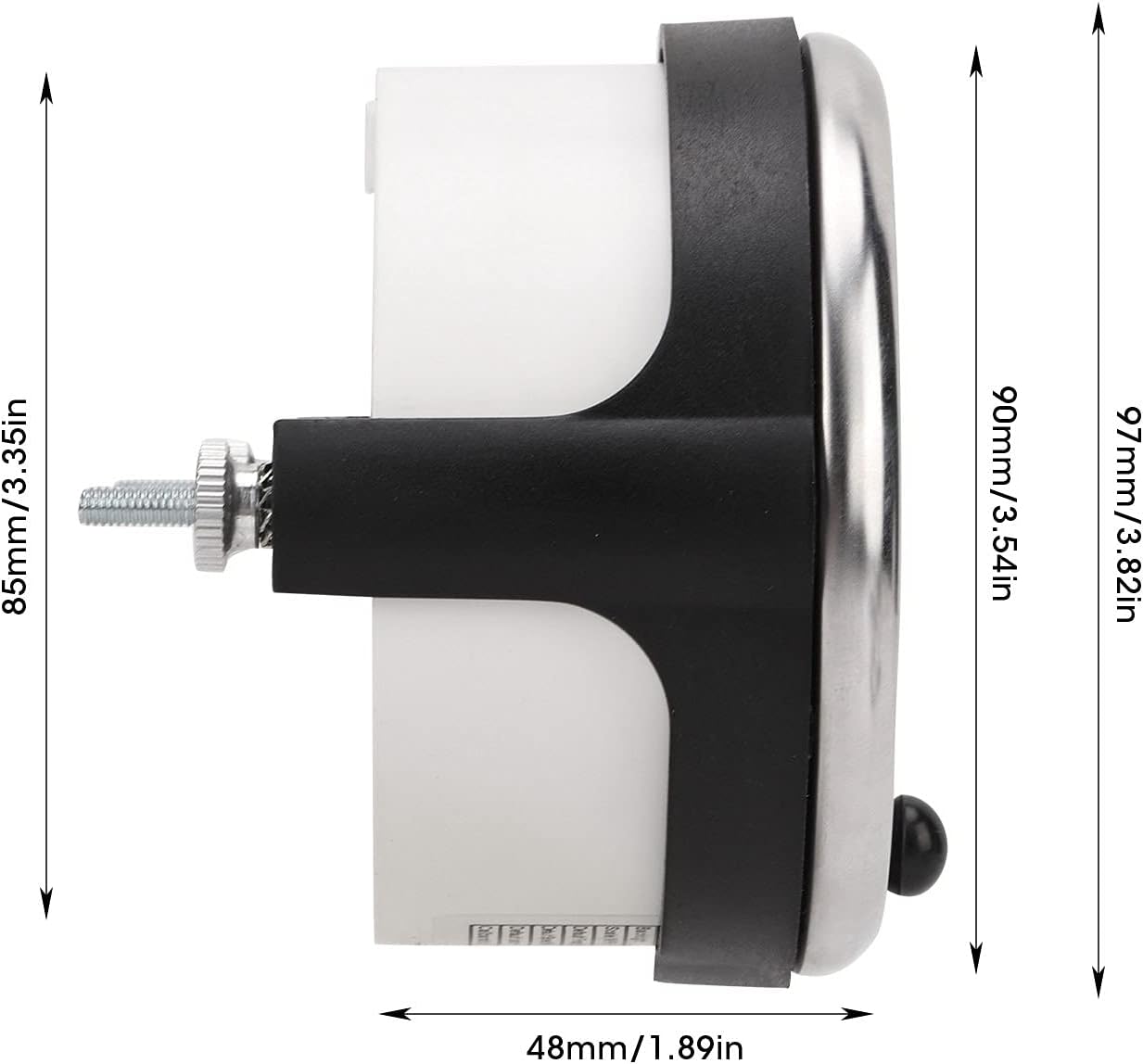

• 85mm/3.3in Specification---- 85mm speedometer dashboard with LCD display, ued to display MPH of vehicles with 1‑8 cylinder gas engine, measuring range 0-160MPH. A black dial, silver 316L stainless steel case, white or amber backlight color, high transparent lens and glowing red pointer
• Accurate Display---- This 85mm speedometer adopts stepper motor drive pointer, precisely displays the engine speed with high indication accuracy and is relatively simple to drive and control. The LCD display clearly shows the mileage
• High Performance---- 9‑32V ultra‑wide long‑term working voltage, and maximum up to 36V (≤1 minute). There is a snap together with the harness connector, which ensures secure connection, so that the gauge can work normally even under strong vibration
• Professional Manufacturing---- IP67 waterproof and dustproof, to use even in , alkali and humid environments, and the curved glass features good anti‑fog effect. The speedometer gauge adopts professional manufacturing process, with stable performance and good reliability
• Speedometer for 1‑8 Cylinder Engine---- Wide range of applications, this speedometer is suitable for 1-8 cylinder gasoline engine and 12V 24V car, truck, boat, generator engine, gasoline engine, etc. Please confirm whether the product is suitable before purchasing
